2" CARBON FIBER TELESCOPING CENTER POST
From the originators of the no tools quick release
Center Post System.
Never before has changing center posts been so fast and
easy. When connecting or disconnecting the center post there is never
any need to be grasping for a connector to connect or disconnect inside
the post. The post itself contains a custom designed cable with self
contained conductors and contacts.
CONNECTING OR DISCONNECTING YOUR CENTER POST

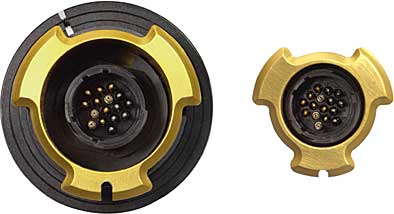

The bayonet mounted design allows for quick positive locking of
your center post. There is a registration pin on the receiving mount,
as well as registration keys on your connectors, that assures correct
alignment. All that is needed is a 60 degree turn to loosen or reassemble
your center post. It truly takes a few seconds, and no tools are required.
When we designed our internal cable, we used all the correct
camera power wire gauge sizes, correct video coax cable, signal wires
and even left room for future options by leaving open two signal wires
and one coax. This could be used by you for any special needs you have
that we may not have not already designed into the Ultimate system.
This custom designed carbon fiber post gives the maximum
rigidity ever designed for this type of system. Currently this post
is up to 15X more rigid than current designs. To keep maximum integrity
to the center post there are no slots or grooves cut into the inner
or outer posts. Another great advantage to this design is when you wish
to run or walk forward and shoot backwards. No more flipping your camera
and FI &Z. In 10 seconds you can spin your post 180 degrees, that simple.
To align your upper camera platform and lower electronics
housing, simply align the ruler markings on the post with the slot on
the center post clamp. |
